Segments

Property of: Beam

Value Type: int

Description:

Sets how many straight segments the Beam is made up of.

This value can be any integer greater than 0. The default value is 10.

Beam Segments and curvature

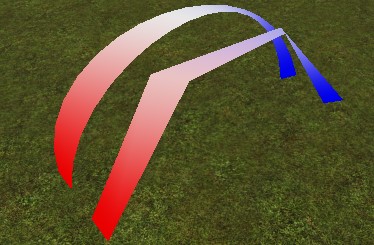

Rather than being a perfect curve, a beam is made up of straight segments. The more segments, the higher the resoloution of the curve. See the image below for a demonstration of this:

enter image description here

For more information on how a Beam is configured to curve, see the page for Beam/CurveSize0.

Beam Segments with Color and Transparency

The Beam/Color and Beam/Transparency properties require a certain number of segments to display correctly. This is because each segment can only show a transition between two colors or transparencies. Therefore a Beam requires at least n-1 segments to display correctly, where n is the number of keypoint associated with the Beam’s Beam/Color and Beam/Transparency.

Code Samples

Creating a Beam From Scratch

This code sample demonstrates how a Beam effect can be created from scratch by creating a Beam, setting all of its properties and configuring it’s Attachments. See below for an image of the final result:

enter image description here


				Creating a Beam From Scratch

				Expected Output

				Expand

			-- create attachments
local att0 = Instance.new("Attachment")
local att1 = Instance.new("Attachment")

-- parent to terrain (can be part instead)
att0.Parent = workspace.Terrain
att1.Parent = workspace.Terrain

-- position attachments
att0.Position = Vector3.new(0, 10, 0)
att1.Position = Vector3.new(0, 10, 10)

-- create beam
local beam = Instance.new("Beam")
beam.Attachment0 = att0
beam.Attachment1 = att1

-- appearance properties
beam.Color = ColorSequence.new({ -- a color sequence shifting from white to blue
		ColorSequenceKeypoint.new(0, Color3.fromRGB(255, 255, 255)),
		ColorSequenceKeypoint.new(1, Color3.fromRGB(0, 255, 255))
	}
)
beam.LightEmission = 1 -- use additive blending
beam.LightInfluence = 0 -- beam not influenced by light
beam.Texture = "rbxasset://textures/particles/sparkles_main.dds" -- a built in sparkle texture
beam.TextureMode = Enum.TextureMode.Wrap -- wrap so length can be set by TextureLength
beam.TextureLength = 1 -- repeating texture is 1 stud long
beam.TextureSpeed = 1 -- slow texture speed
beam.Transparency = NumberSequence.new({ -- beam fades out at the end
		NumberSequenceKeypoint.new(0, 0),
		NumberSequenceKeypoint.new(0.8, 0),
		NumberSequenceKeypoint.new(1, 1)
	}
)
beam.ZOffset = 0 -- render at the position of the beam without offset

-- shape properties
beam.CurveSize0 = 2 -- create a curved beam
beam.CurveSize1 = -2 -- create a curved beam
beam.FaceCamera = true -- beam is visible from every angle
beam.Segments = 10 -- default curve resolution
beam.Width0 = 0.2 -- starts small
beam.Width1 = 2 -- ends big

-- parent beam
beam.Enabled = true
beam.Parent = att0

				Copy Code
